ESP8266 wifi CONTROL scrolling text on 64*64 LED MATRIX

1,293 Views

ESP8266 TO CONTROL 64*64 LED MATRIX

64*64 LED MATRIX Control AND Update Data Via Internet Using ESP8266

yes, you can control and update led matrix data via the internet, if you find this kind of projects so you came in the right place. follow the step and connection diagram to connect your esp8266 and led matrix as shown in the given circuit diagram…

64*64 LED MATRIX INTERFACING USING ESP8266

if your led matrix panel is away from your height and impossible place like road advertising led matrix it’s not possible to go and upload the data to the board I have to suggest a full tutorial on how to update data via the internet with no data loss and with using secure user name and password to encrypt the data.

how to make this project.

connecting the jumper wire to the led matrix panel with the same pin given in the connection diagram. after connecting download and install the led matrix library and then upload the code into esp8266, then connect GND to GND and VCC to 5v of Arduino pin.

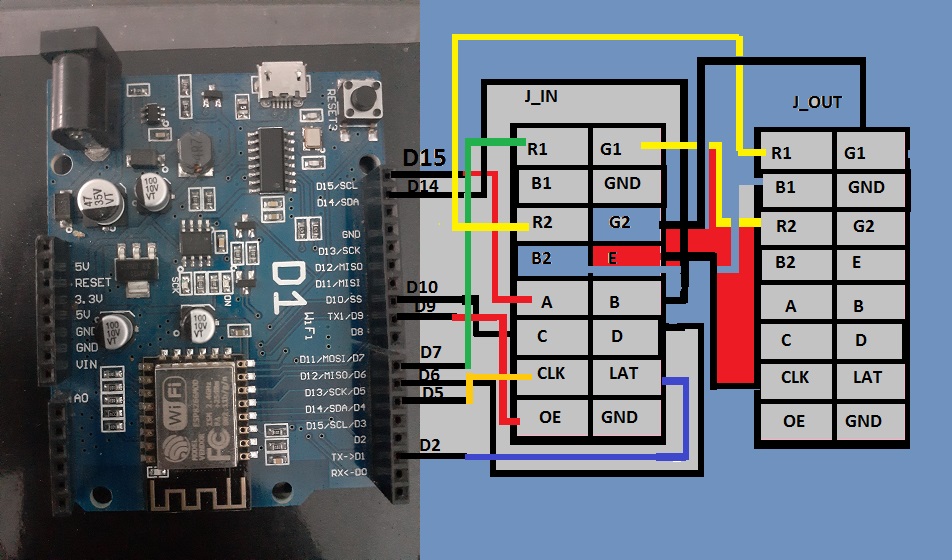

ESP8266 WITH LED MATRIX CONNECTION DIAGRAM.

www.yawot.com

download the library and extract the files first after extracting the file, copy and phase into the Arduino library and example folder. how to open Arduino file location, Right-click on Arduino ide icon and open the option click open file location, then paste the code and then paste the code example and library folder.

WIRING CONNECTION ESP8266 AND LED MATRIX

4050cookie-checkESP8266 wifi CONTROL scrolling text on 64*64 LED MATRIX

Author: yawot
